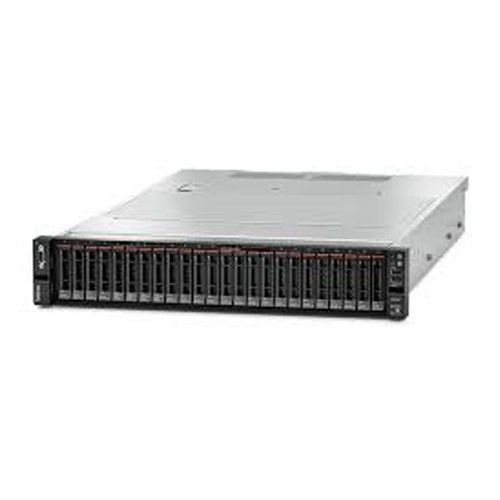

ThinkSystem SR650/Intel Xeon Gold-5118-12C-105W-2.3GHz/16G TruDDR4 2666 MHz /8×2.5″ SATA/750W (7X06A03JSG)

Tên sản phẩm: ThinkSystem SR650 Rack 2U
Model: 7X06A03JSG
Xuất xứ: China
Hỗ trợ hệ điều hành
Microsoft Windows Server 2016/2012 R2. Red Hat Enterprise Linux 7.4/7.3/6.9.SUSE Linux Enterprise Server 12 SP3/12 SP2/11 SP4. VMware ESXi 6.5U1/6.5/6.0U3
Tên bộ vi xử lý Intel Xeon Gold 5118 12C/2.3GHz/16.5MB/105W/DDR4-2400
Số lõi 12
Tốc độ xung nhịp 2.3 GHz
Bộ nhớ đệm 13.75MB
Số bộ xử lý 1/2
Hỗ trợ tối đa
Up to two 205W Intel Xeon Scalable family processors, Bronze, Silver, Gold, orPlatinum.
Up to 28 cores at 2.5GHz, up to 3.6GHz with 4 cores.
Two processors areconnected with two UPI (Ultra Path Interconnect) links up to 10.4GT/s
Up to 2400 MHz
Chipset
Intel C624
Bộ nhớ chính (RAM)
Cài đặt theo máy 16GB TruDDR4 2666 MHz (1Rx4 1.2V) RDIMM
Công nghệ ECC, memory mirroring, and memory sparing
Khe cắm RAM
Up to 24 DIMM sockets. Each processor supports up to 12 DIMM sockets with6 channels. DDR4-2666. RDIMMs, LRDIMMs, 3DS RDIMMs are supported, butmemory types cannot be intermixed
Hỗ trợ tối đa
Up to 768GB with 24 x 32 GB RDIMMs and two processors. Or up to 1.5TB with24 x 64 GB LRDIMMs and two processors. Or up to 3TB with 24 x 128 GB 3DSLRDIMMs and two -M suffix processors. -M suffix processor supports 1.5TBmemory per socket, non -M suffix processor supports 768GB memory per socket
Ổ đĩa cứng (HDD)
Dung lượng Optional
Khay ổ cứng
HotPlug 2.5″ SAS/SATA
Supports 8 front 3.5″ SATA/SAS HS bays, or 12 front 3.5″ SATA/SAS HS bays withmaximum 4 AnyBay, or 8 front 2.5″ SATA/SAS HS bays with maximum 4 AnyBay,or 16 front 2.5″ SATA/SAS HS bays with maximum 8 AnyBay, or 24 front 2.5″ SATA/SAS HS bays with maximum 4 AnyBay.
Optional 2 rear 3.5″ HS bays are supported on 12 x 3.5″ model, takes place in risercard 1 location.
Optional one or two internal M.2 SSD for boot, dual M.2 SSD supports mirroring
Up to 24 bays SFF HS SAS/SATA
Hỗ trợ tối đa
Max Storage Internal 360TB
Raid
RAID 530i (cacheless) supports RAID 0, 1, 10, 5, 50
Hỗ trợ Raid
Ổ đĩa quang (ODD)
Ổ đĩa Optional
Bộ xử lý đồ họa Matrox G200eR2 with 16 MB
Dung lượng đồ họa Shared
Khe cắm mở rộng
Slot 1-3 (riser card 1)
Supports one of the following for riser card 1:
Option 1:PCIe 3.0 x8/x8/x8 (slot 1-3). Full height, half length.
Option 2:PCIe 3.0 x16/x8 (slot 1 and 3). Full height, full length for x16.Full height, half length for x8
Option 3:PCIe 3.0 x8/x8/x8 ML2 (slot 1-3). Full height, half length
Option 4:PCIe 3.0 x8/x16 ML2 (slot 1 and 3). Full height, half length
Option 5:Two rear 3.5″ disk bays, 12 x 3.5″ models only
Slot 4 (onboard) PCIe 3.0 x8, low profile
Slot 5 (riser card 2) PCIe 3.0 x16, full height, full length, requires 2nd CPU
Slot 6 (riser card 2) PCIe 3.0 x16, full height, half length, requires 2nd CPU
Cổng giao tiếp
Front: One XClarity Controller USB connector, one USB 3.0, one optional VGA
Rear: One VGA, two USB 3.0, oneXClarity Controller network connector. OptionalCOM port
Kết nối mạng
Network (RJ-45)
4x 1/10Gb Ethernet ports
Quản lý hệ thống (Systems management)
Systems management
XClarity Controller Standard,optional upgrades to Advanced orEnterpriseareavailable. Energy Manager. XClarity Administrator. Lenovo Capacity Planner.Provisioning Manager. Essentials. Light Path Diagnostics
Thiết bị nhập liệu / bàn phím
Bàn phím None
Chuột None
Nguồn 750W(230V/115V) Platinum Hot-Swap Power Supply
Kích thước / trọng lượng
Kích thước: H 87 mm x W 445 mm x D 720 mm
Trọng lượng: Maximum configuration: 70.54 lb (32 kg)
Kiểu dáng: Rack 2U
