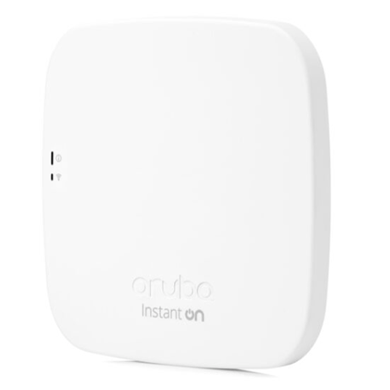

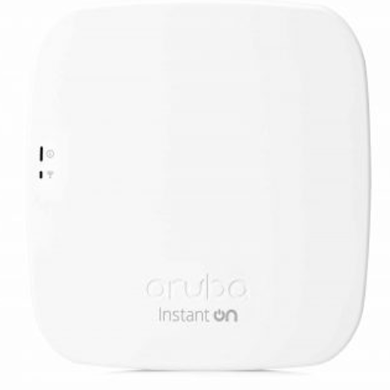

Aruba Instant On AP11

Supports 802.11ac Wave 2.0 technology to increase bandwidth and speed for wireless devices (30% increase compared to Wave 1.0).
With 2 Dual-band antennas (2.4Ghz / 5Ghz) supporting the latest 2×2 MU-MIMO technology, the strong transmitting power (2.4Ghz is 3.3dBi and 5Ghz is 5dBi) increases coverage and eliminates dead spots.
Operates in 2 bands 2.4Ghz and 5Ghz 802.11 ac / a / b / g / n with multi-user MIMO (MU-MIMO).
Speeds up to 1167Mbps (300Mbps for the 2.4GHz band and 867Mbps for the 5GHz band).
With 1 10/100/1000 network port supporting 802.3af class 3 standard PoE for flexible installation.
Supports 50 devices to access simultaneously.
Support remote management and monitoring.

Tư vấn ngay Chúng tôi sẽ liên hệ lại bạn

Technical Specification

Model	Aruba Instant AP 11
Standards	IEEE 802.11b/g/n on 2.4Ghz
Standards	IEEE 802.11b/g/n on 5Ghz
Antennas	Intergrated down-tilt omni-directional antennas with maximun individual antenna gain of 3.3dBi in 2.4 Ghz and 5.8dBi in 5Ghz.

Physical Interface	Uplink Gigabit Ethernet port, with PoE-in support(802.3af)
	DC power connector (12V)
	Bluetooth Low Energy (BLE) radio
	LED status indicators
	Kensington security slot
Power Source	Power over Ethernet (PoE): 802.3af (Class3)
	DC power (12V)
	Note: Power sources are sold separately
Environmental & Reliability	Operating temperature: 0° C to +40° C (+32° F to +104° F)
	Humidity: 5% to 93% non-condensing
	MTBF: 795khrs (91yrs) at +25° C
Industry Certifications	UL 2043 plenum rating
	EN 60601-1-1 and EN 60601-1-2 (for deployment in medical environments)
	Wi-Fi Alliance certified (WFA) 802.11ac with Wave 2 (Wi-Fi 5), WPA2, WPA3, Enhanced Open (OWE)
Management Options	Instant On mobile application (Android & iOS)
Management Options	Cloud Portal: Portal.ArubaInstantOn.com
Dimensions & Weights	152mm x 152mm x 34mm, excluding mount accessories
Dimensions & Weights	Weight: 193g
Package Contents	Aruba Instant On AP11 Indoor Access Point
	Aruba Instant On AP11 Quick Start guide
	Ceiling rail mount clip
	Ethernet cable
	Solid surface mount clip
