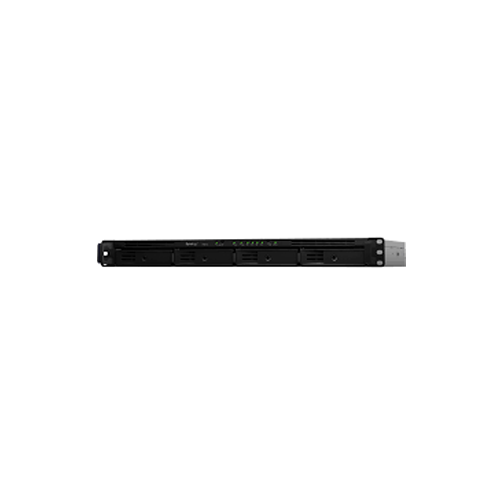

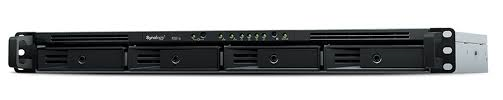

Thông tin sản phẩm: Synology RackStation RS816
CPU Model Marvell Armada 385 88F6820
CPU Architecture 32-bit
CPU Frequency Dual Core 1.8 GHz
Hardware Encryption Engine
Memory
System Memory 1 GB DDR3
Storage
Drive Bays 4
Maximum Drive Bays with Expansion Unit 8
Compatible Drive Type
3.5″ SATA HDD
2.5″ SATA HDD
2.5″ SATA SSD
Maximum Internal Raw Capacity 48 TB (12 TB drive x 4) (Capacity may vary by RAID types)
Maximum Raw Capacity with Expansion Units 96 TB (48 TB + 12 TB drive x 4) (Capacity may vary by RAID types)
Maximum Single Volume Size 16 TB
Hot Swappable Drive
Notes
“Compatible drive type” indicates the drives that have been tested to be compatible with Synology products. This term does not indicate the maximum connection speed of each drive bay.
The maximum raw capacity is not limited by the maximum single volume size. Synology NAS models may utilize capacities over the maximum single volume size as long as each volume created is below the limit.
External Ports
RJ-45 1GbE LAN Port 2 (with Link Aggregation / Failover support)
USB 3.0 Port 2
eSATA Port 1
File System
Internal Drives EXT4
External Drives
EXT4
EXT3
FAT
NTFS
HFS+*
exFAT*
Notes
HFS+ is read only, max 2TB volume size.
exFAT Access is purchased separately in Package Center.
Appearance
Size (Height x Width x Depth) 44 mm x 430.5 mm x 295.5 mm
Weight 4.34 kg
Others
System Fan 40 mm x 40 mm x 3 pcs
Fan Speed Mode
Cool Mode
Quiet Mode
Power Recovery
Noise Level 28.9 dB(A)
Scheduled Power On/Off
Wake on LAN/WAN
Power Supply Unit / Adapter 150W
AC Input Power Voltage 100V to 240V AC
Power Frequency 50/60 Hz, Single Phase
Power Consumption*
27.9 W (Access)
12.4 W (HDD Hibernation)
British Thermal Unit
95.2 BTU/hr (Access)
42.31 BTU/hr (HDD Hibernation)
Environment Temperature
Operating Temperature 5°C to 35°C (40°F to 95°F)
Storage Temperature -20°C to 60°C (-5°F to 140°F)
Relative Humidity 5% to 95% RH
Certification
* FCC Class A
* CE Class A
* BSMI Class A
