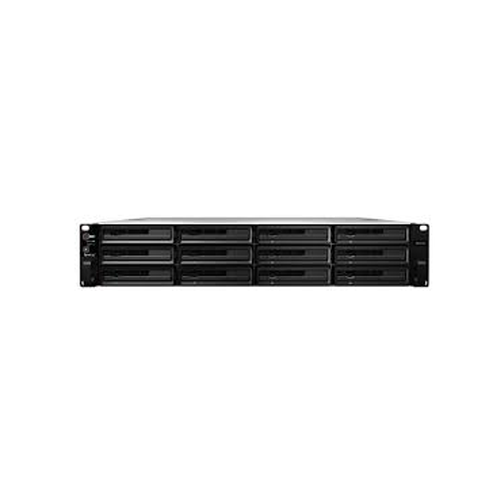

Thông tin sản phẩm: Synology RackStation RS3617xs
CPU Model: Intel Xeon E3-1230 v2
CPU Architecture: 64-bit
CPU Frequency: Quad Core 3.3 GHz
Hardware Encryp: tion Engine (AES-NI)
Memory
System Memory: 4 GB DDR3 ECC
Memory Module Pre-installed: 4GB (2 x 2GB)
Total Memory Slots: 4
Memory Expandable up to: 32 GB (8 GB x 4)
Storage
Drive Bays: 12
Maximum Drive Bays with Expansion Unit: 36
Compatible Drive Type
3.5″ SATA HDD
2.5″ SATA HDD
2.5″ SATA SSD
Maximum Internal Raw Capacity: 96 TB (8 TB drive x 12) (Capacity may vary by RAID types)
Maximum Raw Capacity with Expansion Units: 384 TB (96 TB + 12 TB drive x 24) (Capacity may vary by RAID types)
Maximum Single Volume Size
200 TB (32GB RAM required, for RAID 5 or RAID 6 groups only)
108 TB
Hot Swappable Drive
External Ports
RJ-45 1GbE LAN Port: 4 (with Link Aggregation / Failover support)
USB 2.0 Port: 2
USB 3.0 Port: 2
Expansion Port: 2
PCIe
PCIe Expansion
1 x Gen3 x8 slot (white, x8 link)
1 x Gen3 x8 slot (black, x4 link)
Add-in-card support: PCIe Network Interface Card
File System
Internal Drives
Btrfs
EXT4
External Drives
Btrfs
– EXT4
– EXT3
– FAT
– NTFS
– HFS+
exFAT*
Notes exFAT Access is purchased separately in Package Center.
Appearance
Size (Height x Width x Depth): 88 mm x 445 mm x 570 mm
Weight: 13.3 kg
Others
System Fan
80 mm x 80 mm x 4 pcs
Fan Speed Mode
Full-Speed Mode
Cool Mode
Quiet Mode
Easy Replacement System Fan
Power Recovery
Noise Level: 40.5 dB(A)
Scheduled Power On/Off
Wake on LAN/WAN
Power Supply Unit / Adapter 500W
AC Input Power Voltage: 100V to 240V AC
Power Frequency: 50/60 Hz, Single Phase
Power Consumption*
116.7 W (Access)
60.3 W (HDD Hibernation)
British Thermal Unit
398.19 BTU/hr (Access)
205.75 BTU/hr (HDD Hibernation)
Environment Temperature
Operating Temperature 5°C to 35°C (40°F to 95°F)
Storage Temperature -20°C to 60°C (-5°F to 140°F)
Relative Humidity 5% to 95% RH
Certification
* FCC Class A
* CE Class A
* BSMI Class A
