THÔNG SỐ KỸ THUẬT:
SPECIFICATIONS
Access Point Specifications
Standards IEEE 802.11a/b/g/n/ac Wave2
IEEE 802.11d/e/h/i/k/r/u/v/w
Modulation: BPSK, QPSK, CCK, 16/64/256-QAM
Radio modes : DSSS, OFDM
Frequency Bands 2.400 to 2.2484 GHz
(Country-specific limits apply, 5.150 to 5.250 GHz
some bands require DFS) 5.250 to 5.350 GHz
5.470 to 5.725 GHz
5.725 to 5.850 GHz
MIMO, Streams 2×2:2 MU-MIMO Power Supply 802.3af PoE Injector, or PoE switch powered
Beamforming Supported Dimensions 17.0 x 17.0 x 4.1 cm (6.7 x 6.7 x 1.61 Inch)
Channel Width 20MHz, 40MHz, 80MHz Weight 384 g (0.86 lb)
Concurrent Clients 256 Operating Temperature 0°C to +50°C (+32°F to +122°F)
SSIDs 16 SSIDs across 2 radios Operating Humidity 10% to 95% non-condensing
Transmit Power
(conducted total)
2.4GHz : 24dBm 5GHz : 25dBm Power Consumed 13W (max)
Antenna Gain 2.4GHz : 5.25dBi 5GHz : 5.5dBi LED Tri-color software controlled LED
Max Data Rate 2.4GHz : 400Mbps 5GHz : 867Mbps Secure Mounting Kensington Key Slot
Antenna Dual linear-polarized, Omnidirectional, integrated MTBF 1,507,537 hrs at 50°C, 4,431,480 hrs at 25°C

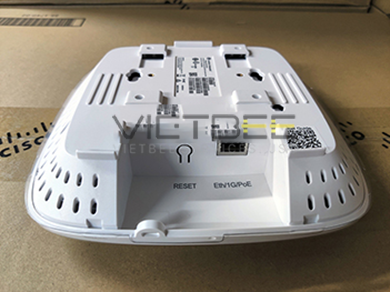

Ethernet Ports One auto-sensing Auto MDIX Gigabit Ethernet
(10/100/1000 Mbps) RJ45 port
Reset Button Supported
Radio Features Maximum ratio combining (MRC)
Cyclic delay/shift diversity (CDD/CSD)
Space-time blocking coding (STBC)
Low-density parity check (LDPC)
Packet Aggregation: A-MPDU, A-MSDU
Certifications FCC, CE, IC, UL,
EN60601-1-2 (Medical EMC),
UL2043 Plenum
WEEE/RoHS compliance
Wi-Fi Alliance Wi-Fi certified a/b/g/n/ac
WPA2 – Enterprise, Personal
WMM, PasspointTest and WiFi Alliance approval in Progress
Mounting Options Wall and Ceiling mount bracket. Desktop option.
T-Bar bracket supporting: 14mm, 24mm, 38mm.
Wi-Fi Features
Management Modes cnMaestro cloud managed
cnMaestro on-premises VM controller managed
Autopilot (AP as controller for up to 32 AP network)
Standalone with AP GUI (http/https), CLI (telnet/ssh)
Wireless Security WPA-TKIP, WPA2-AES, 802.11i
WPA-PSK, WPA2-PSK, WPA2-Enterprise
802.1x Authentication with various EAP types
(EAP-TLS, EAP-TTLS/MSCHAPv2, PEAPv0/EAPMSCHAPv2, PEAPv1/EAP-GTC, EAP-SIM, EAP-AKA,
EAP-AKA’, EAP-FAST
Protected Management Frames (802.11w)
RF Management AutoRF automatically manages channel and power Dynamic SSID Service by time/date, by monitored host.
Guest Access Captive
Portal
cnMaestro Controller Portal
Integrates with 3rd party Guest Access Portals
Built-in Portal on AP
LDAP & RADIUS authentication
Walled Garden with DNS whitelist
MAC Authentication On-AP MAC filtering list.
On-Controller MAC filtering list.
RADIUS MAC Authentication.
MAC Authentication fallback to Captive Portal
Rate Limiting Per-client, Per-WLAN static and dynamic rate limiting Firewall Layer-2, Layer-3 and DNS ACL. DoS Protection.
Client Isolation On AP, Network-wide. 3G/4G/LTE Offload Passpoint (Hotspot 2.0)
Fast Roaming 802.11r, Opportunistic Key Caching, Enhanced Roaming DHCP Relay Supported, with Option-82 customization
Airtime Management Airtime Fairness, Band Steering, Band Balancing External NMS Monitoring SNMP v1, v2c, v3
AAA Support RADIUS Authentication, Accounting, Dynamic
Authorization (CoA, DM). Server failover, load-balancing
Client APIs Client Presence/Location API
DNS, NAT and TCP Connecting Logging
QoS 802.11e/WMM QoS. DSCP/ToS mapping. Time Synchronization Auto (from controller), NTP
Ethernet (L2) Services 802.1p/802.q, RADIUS assigned VLAN, VLAN per SSID,
VLAN pooling. LLDP. IGMP Snooping (V1/v2/v3)
Troubleshooting Tools Packet Capture, Spectrum Analyzer, DNS check,
Ping, Traceroute, Syslog, Speedtest.
Mesh WDS Mesh with Single and Multiple radio hops. Traffic Tunnels L2TP, L2oGRE, PPPoE
Network Services NAT, DHCP Server
cnMaestro Controller and Network Manager
Flexible Installation Cloud, Virtual Machine both supported. Integrated Guest Portal Customizable Splash Pages
SMS OTP Authentication
Payment Gateways Support
Voucher based authentication
Social Login
Network Mgmt Centralized Configuration, Statistics, Events, Firmware
Hierarchical Views Network topology mapped to sites and floors
Floor Plans Upload custom floor plans and map APs
RESTful APIs Interface with external systems
