| Specifications |
| Product |
Workstations |
| Manufacture |
Dell |
| Model |

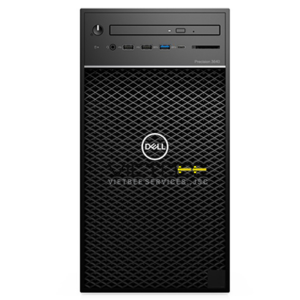

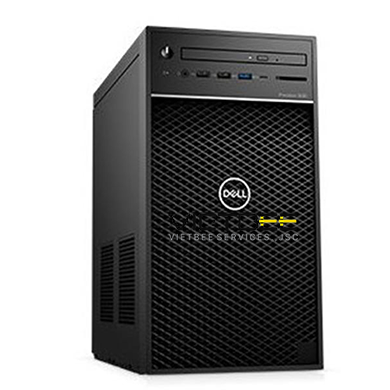

Precision 3640 – 42PT3640D05 |
| Microprocessor |
Intel® Xeon® W-1250 Processor 12M Cache, 3.30 GHz |
| Chipset |
Intel W480 |
| Graphics card |
Discrete VGA, Quadro P620 |
| Memory |
16Gb (2x8Gb) 4 Dimm Slots; Up to 128GB 2666MHz or 2933MHz (2933MHz requires Intel Core i7 or higher) |
| Non-ECC & ECC DDR4 Memory |
| Hard Drive |
1Tb 3.5Inch 7200rpm |
| Network connections |
Integrated: Intel® I219-LM 10/100/1000 . Ethernet connection |
| Optional: Intel 10/100/1000 PCIe Gigabit Network Card |
| Aquantia® AQtion™ AQN-108 5 / 2.5 GbE . NIC Adapter |
| Optional: WLAN on M.2 port 2230 with wireless module up to Wi-Fi® 6 (802.11ax) and Bluetooth® 5 |
| Optical drive |
DVD + /- RW |
| Accessory |
Key/mouse |
| Port communication |

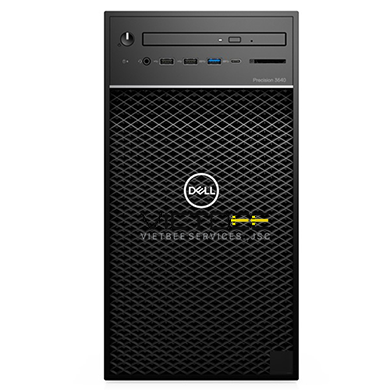

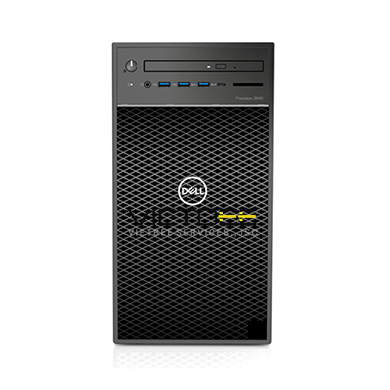

Front: |
| The front of the chassis has 2 I/O services – Standard and Advanced with the following difference about USB and SD card |
| reader. (Availability depends on chassis selection and region) |
| Standard supply |
| 2x USB 2.0 Type-A |
| 1x USB 3.2 Type A Gen1 (5Gbps), with PowerShare |
| 1x USB 3.2 Type CTM Gen2 (10Gbps), with PowerShare |
| No SD card reader |
| Advanced offers |
| 1x USB 3.2 Type A Gen1 (5Gbps) |
| 1x USB 3.2 Type A Gen2 (10Gbps) |
| 1x USB 3.2 Type A Gen2 (10Gbps), with PowerShare |
| 1x USB 3.2 Type CTM Gen2 (10Gbps), with PowerShare |
| With SD card reader |
| Other front ports |
| 1x 3.5 mm headphone jack with microphone |

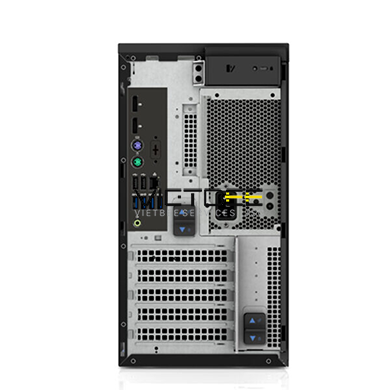

| Rear part |
| Starting at the top, going from left to right |
| 2x DisplayPortTM |
| 2x PS2 (Legacy for keyboard and mouse) |
| 1x Optional Ports (VGA, HDMI 2.0, DP++1.2, Type CTM with DP-Alt mode) |
| 2x USB 2.0 Type-A (with SmartPower) |
| 1x RJ45 . Network Connector |
| 2x USB 3.2 Type A Gen2 (10Gbps) |
| 2x USB 3.2 Type A Gen1 (5Gbps) |
| 1x Audio Out Line |
| Expansion slot |
Slots: 2 M.2 2280 slots for PCIe NVMe™ SSDs, 1 x M.2 2230 WLAN slots, 1x PCIe x16 Gen3 (full height), |
| 1x PCI (full height), 1x PCIe x4 Gen3 (open ended, full height) |
| Power capacity |
Power supply: 300W 85% efficient PSU (80PLUS copper certified); |
| 300W efficient 90% PSU (Certified 80PLUS Gold) Energy Star compliant; |
| 460W 90% efficient PSU (Certified 80PLUS Gold) Energy Star compliant; |
| 550W 90% efficient PSU (80PLUS Gold certified) Energy Star compliant |
| The source of the product will vary depending on the order in the countries of the world |
| Operating system |
Ubuntu Linux 16.04 |
| Designs |
stand up case |
| Size |
HxWxD: 13.19” x 6.95” x 13.58” (33.5cm x 17.7cm x 34.5cm) |
| Weight |
9,358Kg |
