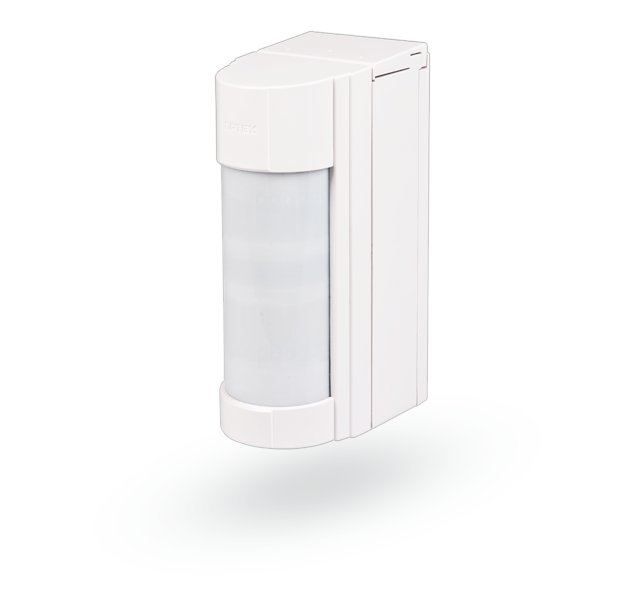

JA-159P Wireless outdoor PIR detector

  • The JA-159P is an outdoor wireless intrusion detector designed to detect human body movement in a protected area.
  • The addition of the dual zone PIR sensor manufactured by Optex with a Jablotron transmitter allows the detector to be used in the JABLOTRON 100+ system.
  • The optical part of the detector has 2 PIR sensors and high protection against false alarms and small animal detection.
  • The detector includes an Anti-Cloaking function – protection against obscuring the view and also has two built-in tamper elements (front and rear).
  • They will immediately report when the detector is opened or an attempt is made to tamper.
  • The detector will periodically self-test and send its status to the control panel.

Category: Tags: , , , , , , , ,

Technical specifications:

Power

 2x Lithium battery type CR123A (3.0 V/1.4 Ah)

Please note: Batteries are not included

Current consumption (nominal/maximal)

 35.5 µA/55 mA

Average battery lifetime

 2 x CR123A, approx. 3 years

Communication band

 868.1 MHz

RF range – communication range

 up to 300 m (open area)

Optex detector parameter

Detection characteristics

 12 m/90 °; 16 segments

Recommended installation height

 0.8 – 1.2 m

Object motion speed

 0.3 – 1.5 ms-1

Battery saving timer

 adjustable 5 s or 120 s

Operational environment according to EN 50131-1

 IV

Security grade

 according to Optex

Operating temperature range

 -20 °C to +60 °C

Detector cover conformance

 IP55

Max. relative humidity of the environment

 95 %

Dimensions

 186 x 71.3 x 105.5 mm

Weight

 500 g

Complies with

 ETSI EN 300 220, EN 50130-4, EN 55022, EN 60950-1

Can be operated according to

 ERC REC 70-03
