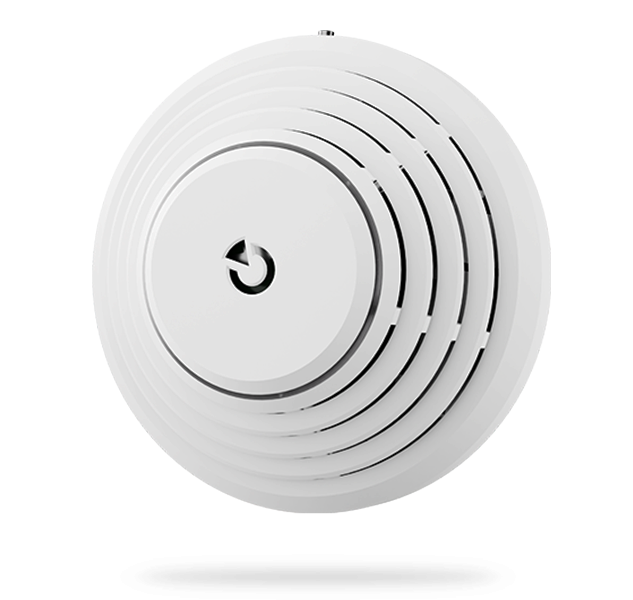

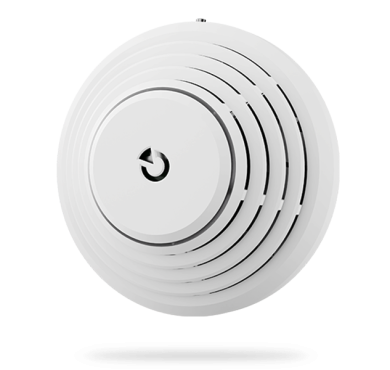

JA-151ST-A Wireless combined smoke and heat detector with built-in siren

  • Used to detect the risk of fire inside residential or commercial buildings.
  • It consists of a fire alarm that signals a fire alarm from the entire detector and from another fire alarm in the system.
  • The detector indicates a dangerous situation optically with an integrated light and a siren. It can report by sound.

             – a fire alarm detected by the detector itself

             – a fire alarm from the system (a fire alarm triggered by another fire alarm)

             – another type of alarm (e.g. an intrusion alarm)

             – for alarms reported by the system, it is possible to set the sections to which the alarm will be assigned

Category: Tags: , ,

Technical specifications:
Power 3 x Alkaline battery type LR6 (AA) 1.5 V/2.4 Ah3 x Lithium battery type FR6 (AA) 1.5 V/3.0 AhPlease note: Batteries are not included
Typical lifetime ≥ 3 years
Communication band 868.1 MHz, Jablotron protocol
Effective Radiated Power (ERP) 10 mW
Communication range approx. 300 m (open area)
Dimensions diameter 126 mm, height 50 mm
Weight 150 g
Smoke detection optical light scattering
Smoke detector sensitivity m = 0.11 ÷ 0.13 dB/m pursuant to EN 14604:2005, EN 54-7
Heat detection class A1 according to EN 54-5
Alarm temperature +60 °C to +65 °C
Operating temperature range -10 °C to +70 °C
Complies with EN 54-5, EN-54-7, EN-25
Also complies with ETSI EN 300 220-2, EN 50130-4, EN 55022 and EN 60950-1
Can be operated according to ERC REC 70-03
Recommended screw 2x ø 3.5 x 40 mm (countersunk head)
