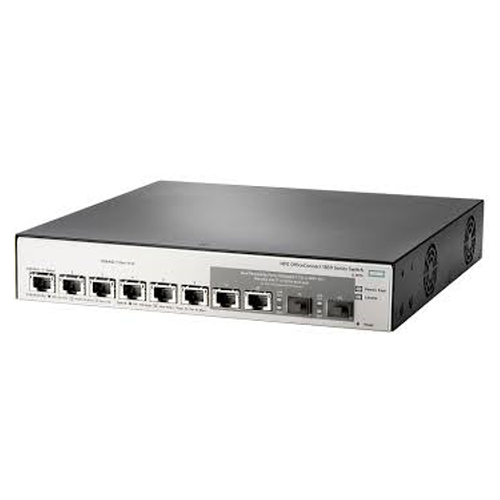

Model JL169A
Ports 6 RJ-45 1/10GBASE-T ports
2 dual-personality ports; each port can be used as either an RJ-45 1/10GBASE-T port or an SFP+ fixed 1000/10000 slot
Processor BCM53412 embedded ARM Cortex-A9 @ 600 MHz
Memory 128 MB DDR3 SDRAM
Packet buffer size 2 MB
Throughput 119 Mpps
Switching Capacity 160 Gbps
Latency 100 Mb Latency: < 6.8 μs
1000 Mb Latency: < 2.9 μs
10 Gbps Latency: < 6.8 μs
MTBF 64.5 years
MAC address size 16K entries
Features VLAN, Spanning Tree, Link aggregation, and IGMP Snooping, RSTP, QoS
Voltage 100 – 127 / 200 – 240 VAC, rated
Max. Power rating 80W
Operating temperature 0°C to 40°C
Operating relative humidity 15% to 95%, noncondensing
Airflow direction Side-to-side
Acoustic Power: 45 dB
Maximum power rating 42.8W
Dimensions 25.3 x 26.07 x 4.4 cm  (1U height)
Weight 1.74kg
