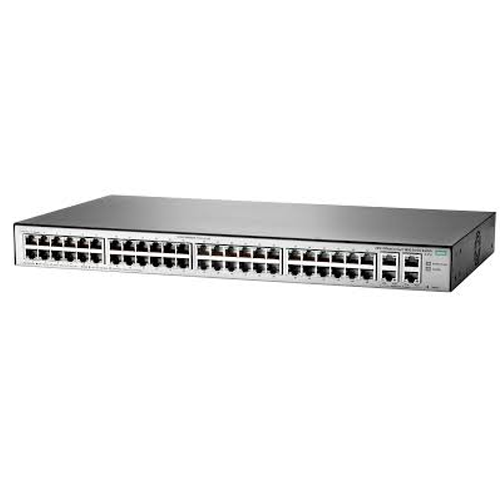

Model JL171A
Ports (48) RJ-45 auto-negotiating 10/100/1000 ports
(4) RJ-45 1/10GBASE-T ports
Processor BCM53346 embedded ARM Cortex-A9 @ 400 MHz
Memory 128 MB DDR3 SDRAM
Packet buffer size 3 MB
Latency 100 Mb Latency: < 9.1 μs
1000 Mb Latency: < 3.7 μs
10 Gbps Latency: < 3.7 μs
Throughput 131 Mpps
Switching capacity 176 Gbps
MTBF 79.4 years
MAC address size 16K entries
Features VLAN, Spanning Tree, Link aggregation, and IGMP Snooping, RSTP, QoS
Voltage 100 – 127 / 200 – 240 VAC, rated
Operating temperature 0°C to 40°C
Operating relative humidity 15% to 95%, noncondensing
Airflow direction Side-to-side
Acoustic Power: 34 dB
Maximum power rating 49.3W
Dimensions 44.25 x 24.64 x 4.4 cm (1U height)
Weight 3.2kg
