Specifications

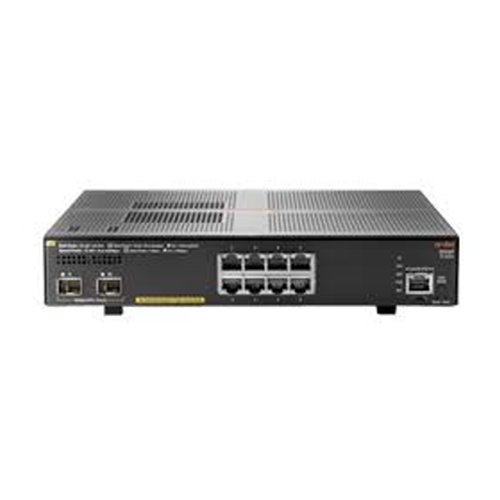

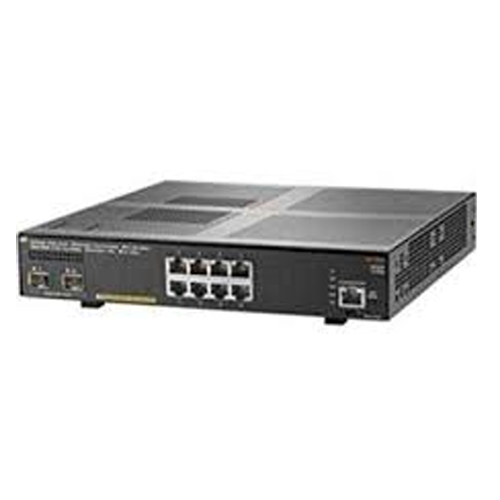

| Model | JL258A |
| Ports | 8 RJ-45 autosensing 10/100/1000 PoE+ ports 2 SFP+ 1/10GbE ports; PHY-less |
| Processor | Dual Core ARM® Coretex A9 @ 1016 MHz |
| RAM | 1 GB DDR3 SDRAM |
| Packet buffer size | 12.38 MB 4.5MB Ingress/7.875MB Egress |
| eMMC | 4 GB |
| Latency | 1000 Mb Latency: < 3.8 μs 10 Gbps Mb Latency: < 1.6 μs |
| Throughput | 41.7 Mpps |
| Routing/Switching capacity | 56 Gbps |
| MAC address size | 32,768 entries |
| Routing table size | 2000 IPv4, 1000 IPv6 in hardware, 200 OSPF, 256 Static, 10000 RIP |
| Management | Aruba AirWave Central Network Management IMC – Intelligent Management Center Command-line interface Web browser Configuration menu SNMP manager Telnet RMON1 FTP Out-of-band management (serial RS-232C or micro USB) |
| Layer 3 Routing | OSPF, Static and RIP routing |
| Voltage | 90 – 264 VAC, rated |
| Maximum power rating | 155W |
| Power over Ethernet | 125W PoE+ |
| Operating temperature | 0°C to 40°C |
| Operating relative humidity | 15% to 95%, noncondensing |
| Dimensions | 25.4 x 25.4 x 4.39 cm |
| Weight | 2kg |
