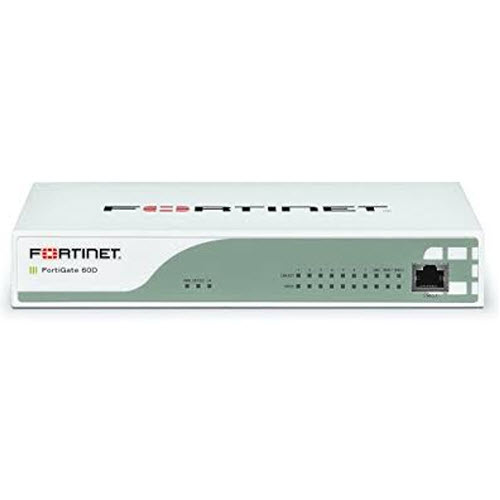

Thông số kỹ thuật: Firewall FortiGate FG-60D
Interfaces and Modules
GE RJ45 WAN 2
GE RJ45 Internal Ports 7
GE RJ45 PoE/+ Ports
GE RJ45 DMZ Ports 1
Wireless Interface
Console Port 1
USB Port 1
System Performance and Capacity
Firewall Throughput (1518 / 512 / 64 byte UDP packets) 1.5 / 1.5 / 1.5 Gbps
Firewall Latency (64 byte, UDP) 4 μs
Firewall Throughput (Packet per Second) 2.2 Mpps
Concurrent Sessions (TCP) 500,000
New Sessions/Sec (TCP) 4,000
Firewall Policies 5,000
IPsec VPN Throughput (512 byte) 1 Gbps
Gateway-to-Gateway IPsec VPN Tunnels 200
Client-to-Gateway IPsec VPN Tunnels 500
SSL-VPN Throughput 30 Mbps
Concurrent SSL-VPN Users 100
SSL Inspection Throughput (IPS, HTTP) 18 Mbps
Application Control Throughput 90 Mbps
CAPWAP Throughput (1444 byte, UDP) 250 Mbps
Virtual Domains (Default / Maximum) 10 / 10
Maximum Number of Switches Supported 8
Maximum Number of FortiAPs (Total / Tunnel Mode) 10 / 5
Maximum Number of FortiTokens 100
Maximum Number of Registered FortiClients 200
High Availability Configurations
Active / Active, Active / Passive, Clustering
System Performance — Optimal Traffic Mix
IPS Throughput 200 Mbps
System Performance — Enterprise Traffic Mix
IPS Throughput 50 Mbps
NGFW Throughput 30 Mbps
Threat Protection Throughput 25 Mbps
Dimensions and Power
Height x Width x Length (inches) 1.50 x 8.50 x 5.83
Height x Width x Length (mm) 38 x 216 x 148
Weight 1.9 lbs (0.9 kg)
Environment
Power Required 100–240V AC, 50–60 Hz
Maximum Current 110 V / 1.5 A, 220 V / 0.75 A
Total Available PoE Power Budget N/A
Power Consumption (Average / Maximum) 11.7 / 14 W
Heat Dissipation 40 BTU/h
Operating Temperature 32–104°F (0–40°C)
Storage Temperature -31–158°F (-35–70°C)
Humidity 10–90% non-condensing
Noise Level Fanless 0 dBA
Operating Altitude Up to 7,400 ft (2,250 m)
Compliance FCC Part 15 Class B, C-Tick, VCCI, CE, UL/cUL, CB
Certifications
ICSA Labs: Firewall, IPsec, IPS, Antivirus, SSL-VPN; USGv6/IPv6
