Thiết bị bảo vệ mạng: Firewall Fortigate 101E | FG-101E-BDL

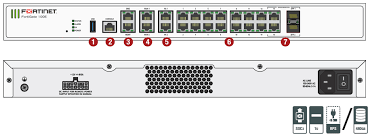

GE RJ45 Ports 14
GE RJ45 Management/HA /DMZ Ports 1 / 2 / 1
GE SFP Slots
GE RJ45 PoE/+ Ports
GE RJ45 WAN Ports 2
GE RJ45 or SFP Shared Ports 2
USB Port 1
Console Port 1
Internal Storage 480 GB
Included Transceivers 0
System Performance
Firewall Throughput (1518 / 512 / 64 byte UDP packets): 7.4 / 7.4 / 4.4 Gbps
Firewall Latency (64 byte UDP packets): 3 μs
Firewall Throughput (Packets Per Second): 6.6 Mpps
Concurrent Sessions (TCP): 2 Million
New Sessions/Second (TCP): 30,000
Firewall Policies: 10,000
IPsec VPN Throughput (512 byte) 1: 4 Gbps
Gateway-to-Gateway IPsec VPN Tunnels: 2,000
Client-to-Gateway IPsec VPN Tunnels: 10,000
SSL-VPN Throughput: 250 Mbps
Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode) 300
SSL Inspection Throughput (IPS, HTTP) 3: 190 Mbps
Application Control Throughput (HTTP 64K) 2: 1 Gbps
CAPWAP Throughput (1444 byte, UDP): 1.5 Gbps
Virtual Domains (Default / Maximum): 10 / 10
Maximum Number of Switches Supported: 24
Maximum Number of FortiAPs (Total / Tunnel Mode): 64 / 32
Maximum Number of FortiTokens: 1,000
Maximum Number of Registered FortiClients: 600
High Availability Configurations
Active / Active, Active / Passive, Clustering
System Performance — Optimal Traffic Mix
IPS Throughput 2: 1.9 Gbps
System Performance — Enterprise Traffic Mix
IPS Throughput 2: 500 Mbps
NGFW Throughput 2, 4: 360 Mbps
Threat Protection Throughput 2, 5: 250 Mbps
Dimensions
Height x Width x Length (inches): 1.75 x 17 x 10
Height x Width x Length (mm): 44.45 x 432 x 254
Form Factor
Rack Mount, 1 RU
Weight: 7.28 lbs (3.3 kg)
Environment
Power Required: 100–240V AC, 60–50 Hz
Maximum Current: 100V / 1A, 240V / 0.5A
Total Available PoE Power Budget*
Power Consumption (Average / Maximum): 24.8 W / 27.5 W
Heat Dissipation: 93.8 BTU/h
Operating Temperature: 32–104°F (0–40°C)
Storage Temperature: -31–158°F (-35–70°C)
Operating Altitude
Up to 7,400 ft (2,250 m)
Humidity: 10–90% non-condensing
Noise Level: 40.4 dBA
Compliance: FCC Part 15B, Class A, CE, RCM, VCCI, UL/cUL, CB, BSMI
Certifications
ICSA Labs: Firewall, IPsec, IPS, Antivirus, SSL-VPN; IPv6
