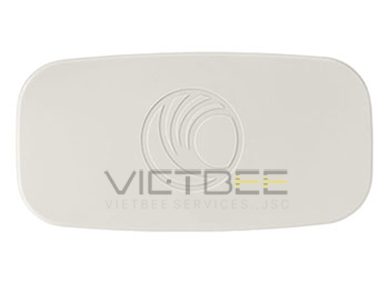

Cambium ePMP™ Force 180 Integrated Radio 5 GHz, 16 dBi, 1x GbE

The Cambium ePMP™ Force 180 Integrated Radio transmitter is the next generation with many improvements in design and performance. Cambium Force 180 is compact, sleek and easy to install. The built-in antenna is boosted from 3dB to 16 dBi to enhance the operating range up to 40%, transmission distance up to 3 KM. The device is equipped with 1 GbE connection port, 200 MB bandwidth, good for high-speed data transmission. Force 180 receives PoE Power, so it is very convenient to deploy, saving a lot of investment and deployment costs.

Categories: , Tags: , , , , , , , , ,

Thông số kỹ thuật:

SPECTRUM
Channel Spacing Configurable on 5 MHz increments
Frequency Range 5 GHz 4910 – 5970 MHz (exact frequencies as allowed by local regulations)
Channel Width 5 | 10 | 20 | 40 MHz
Interface
MAC (Media Access Control) Layer Cambium proprietary
Physical Layer 2×2 MIMO/OFDM
Ethernet Interface 10/100/1000BaseT, Compatible with Cambium PoE pinouts (V+ =7&8,Return=4&5) and Standard PoE pinouts (V+ =4&5,Return=7&8)
Protocols Used IPv4, UDP, TCP, IP, ICMP, SNMPv2c, HTTPs, STP, SSH, IGMP Snooping
Network Management HTTPs, SNMPv2c, SSH
VLAN 802.1Q with 802.1p priority
Performance
ARQ Yes
Nominal Receive Sensitivity (w/FEC) @20MHz Channel MCS0 = -93 dBm to MCS15 = -72 dBm (per branch)
Nominal Receive Sensitivity (w/FEC) @40MHz Channel MCS0 = -90 dBm to MCS15 = -69 dBm (per branch)
Modulation Levels (Adaptive) MCS0 (BPSK) to MCS15 (64QAM 5/6)
Quality of Service Three level priority (Voice, High, Low) with packet classification by DSCP, COS, VLAN ID, IP & MAC Address, Broadcast, Multicast and Station Priority
Link Budget
Transmit Power Range -17 to +30 dBm (combined, to regional EIRP limit) (1 dB interval)
Integrated Antenna Peak Gain 16 dBi
Maximum Transmit Power 30 dBm combine d (subject to regional regulator y restrictions)
Physical
Antenna Connection Integrated antenna
Surge Suppression 2 Joule Integrated
Environmental IP55
Temperature 30°C to +60°C (-22°F to +140°F)
Wind Survival 145 km/hour (90 mi/hour ) with antenna
Weight 0.50 kg (1.1 lb.) (includes mounting bracket)
Dimensions (H x W x D) 12.4 x 25.1 x 11.9 cm (4.9 x 9.9 x 4.7 in) – with mounting bracket attached
Pole Diameter Range 1 – 1.6 in (2.5 – 4.1 cm) with included clamp; up to 2.25 in (5.7 cm) with larger clamp
Power Consumption 10 W Maximum, 5 W Typical
Input Voltage 10 to 30 V
Security
Encryption 128-bit AES (CCMP mode)
Certifications
FCCID Z8H89FT0015
Industry Canada Cert 109W-0015
CE 5 GHz EN 302 502 v1.2.1
5 GHz: EN 301 893 v1.7.1
