Power base voltage: 220 VAC
Operating voltage range of power base: 100-240 VAC
Relay control output port of power base: 2 ports (Max 200W/port)

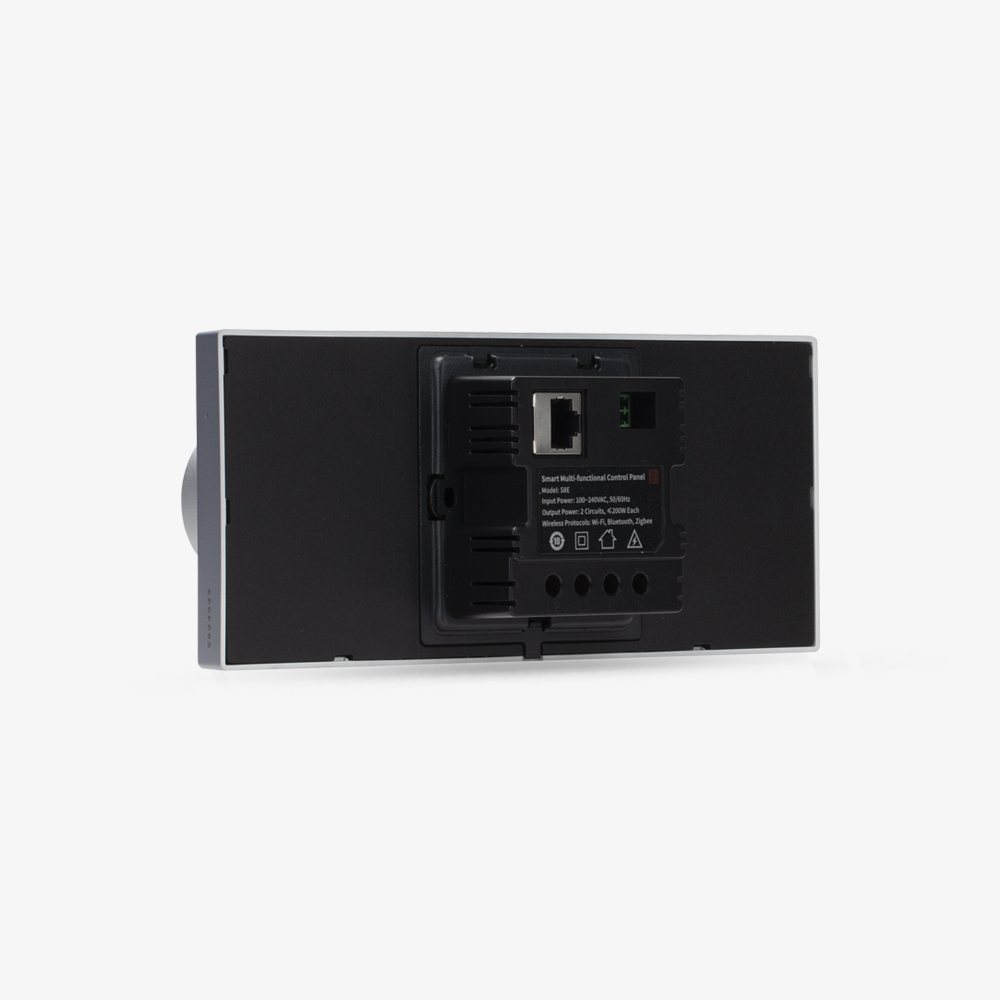

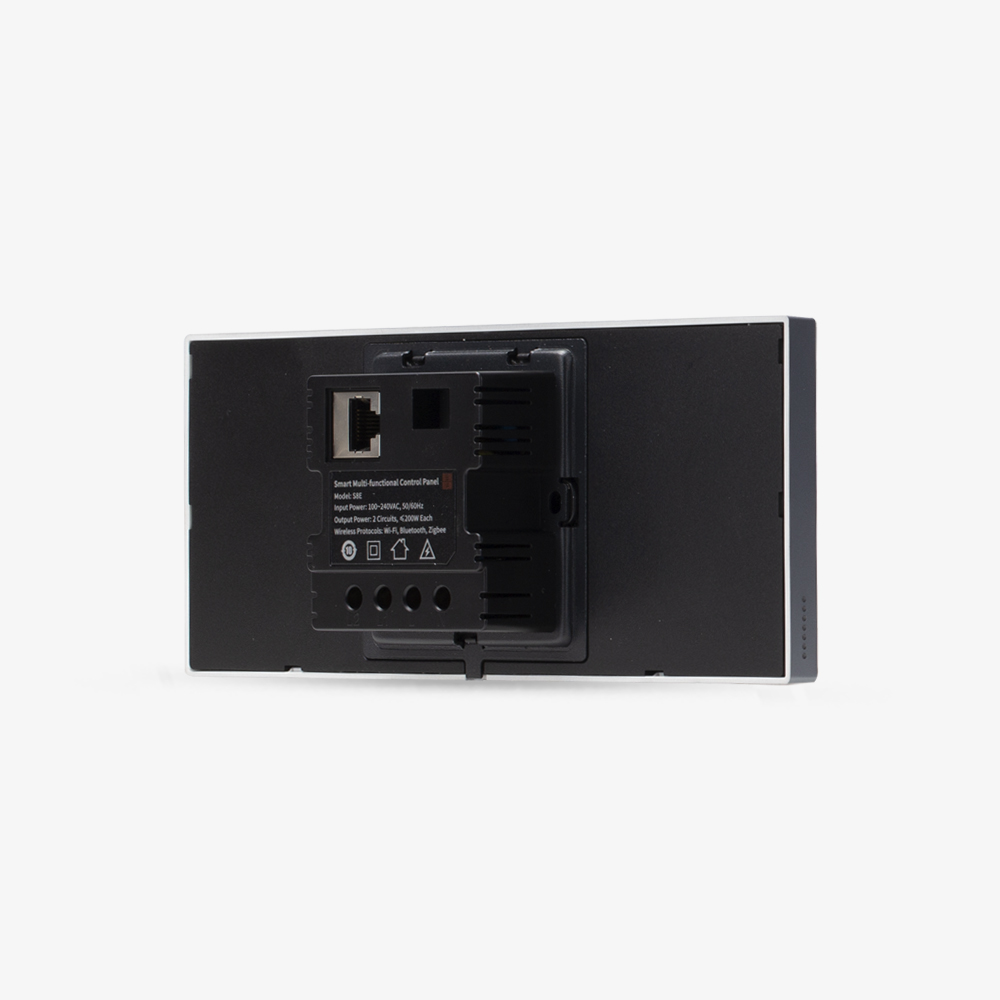

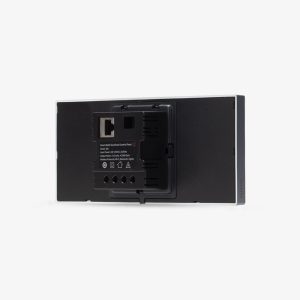

Wired connection standard: RS485/RJ45
Display control panel power supply: Micro USB 5VDC/2A
Wireless connection standard: BLE-5.0, Wifi 2.4 GHz

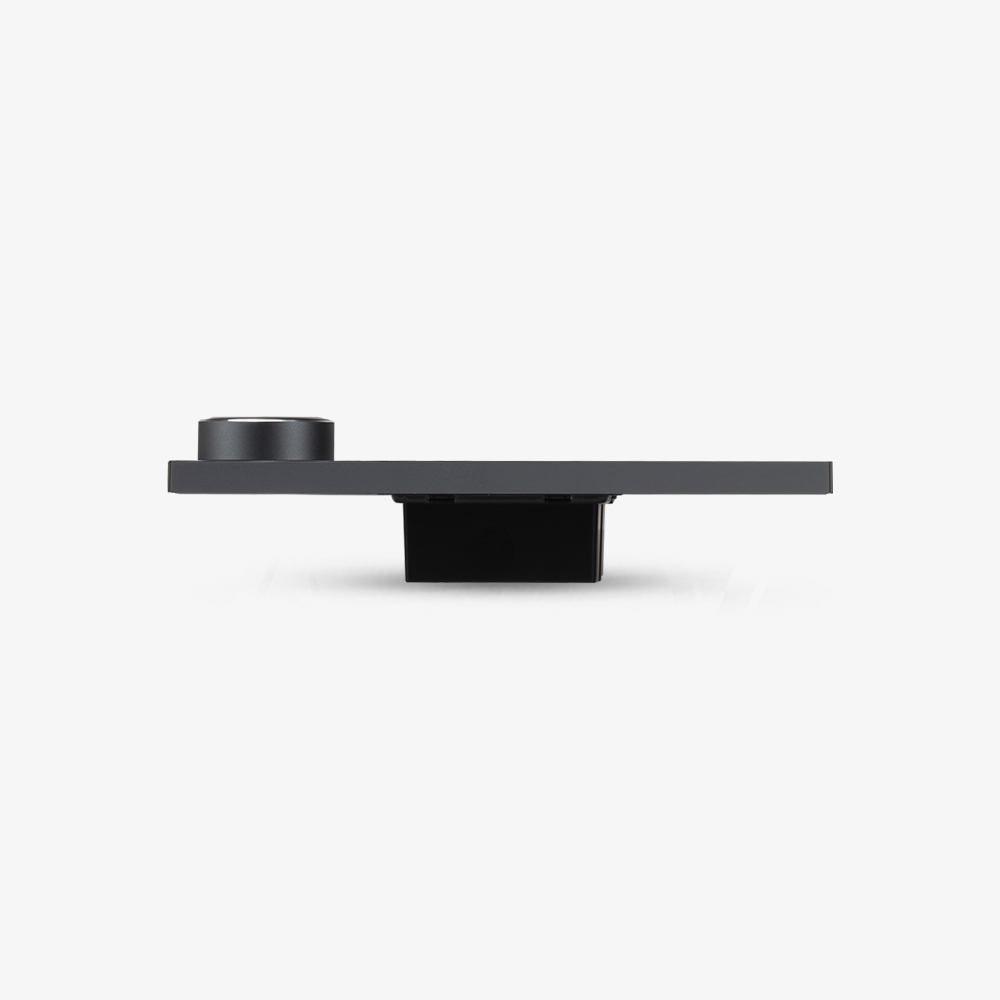

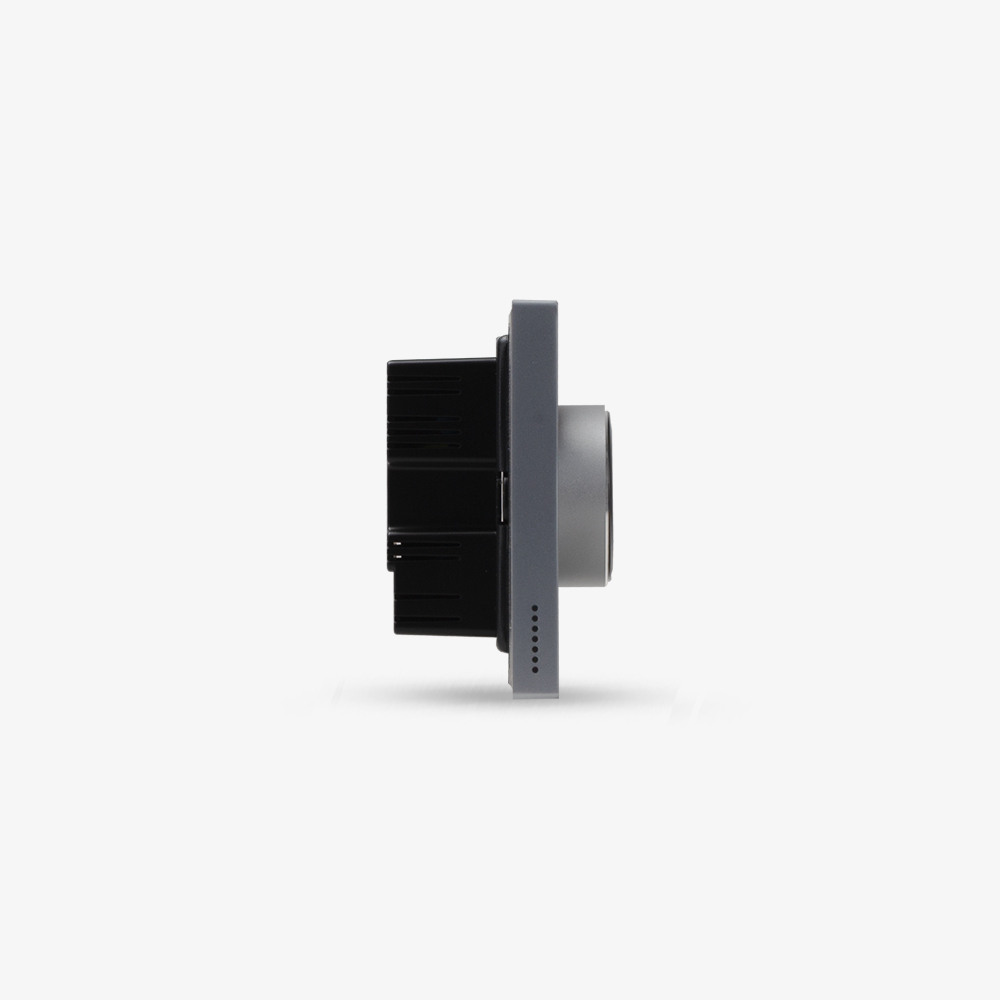

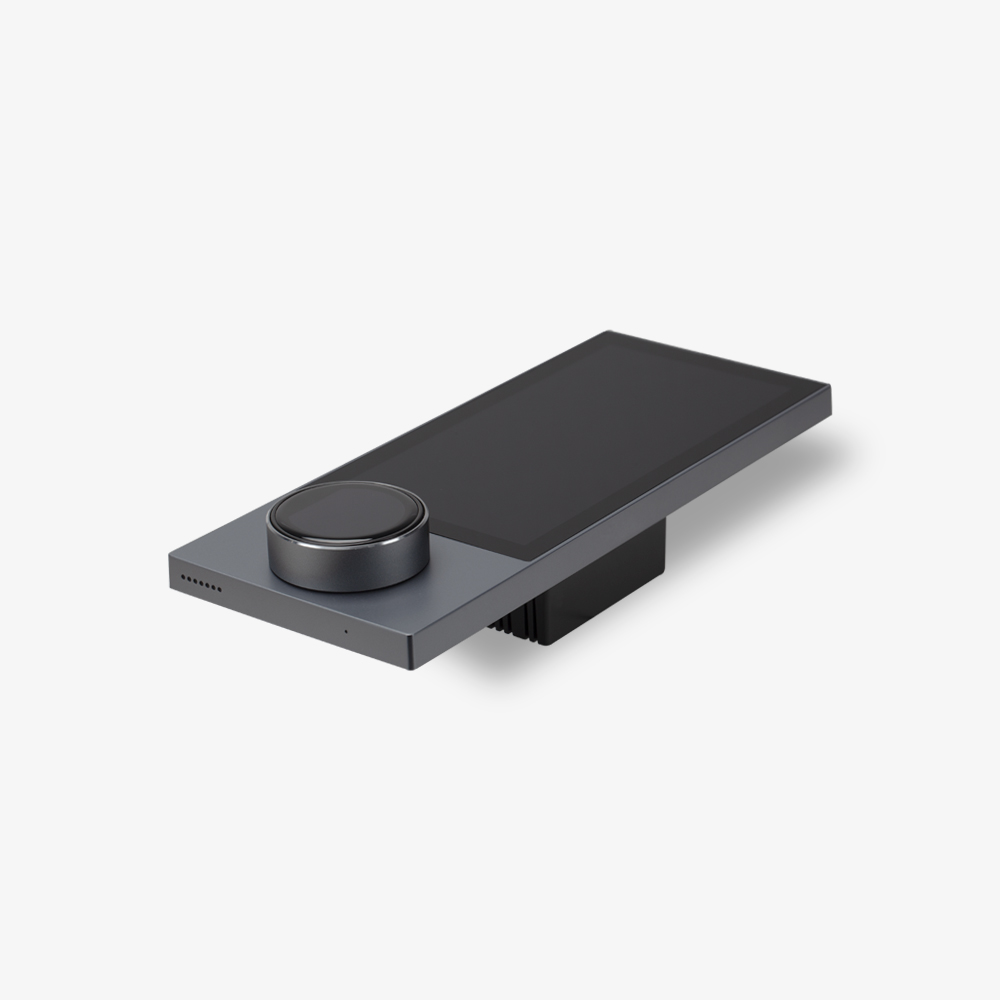

Size: 205 x 85 x 52 mm

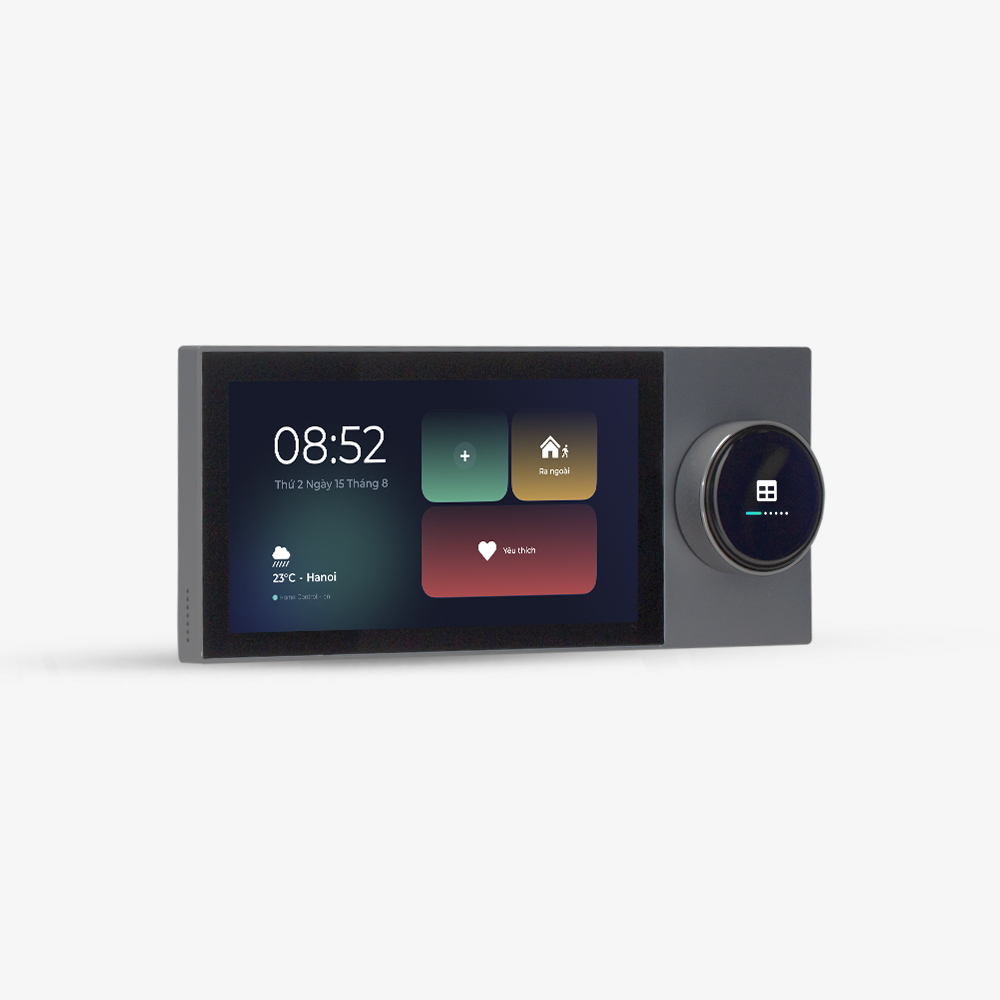

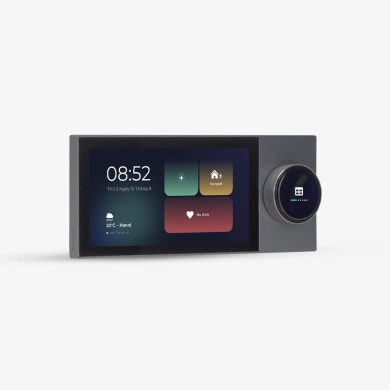

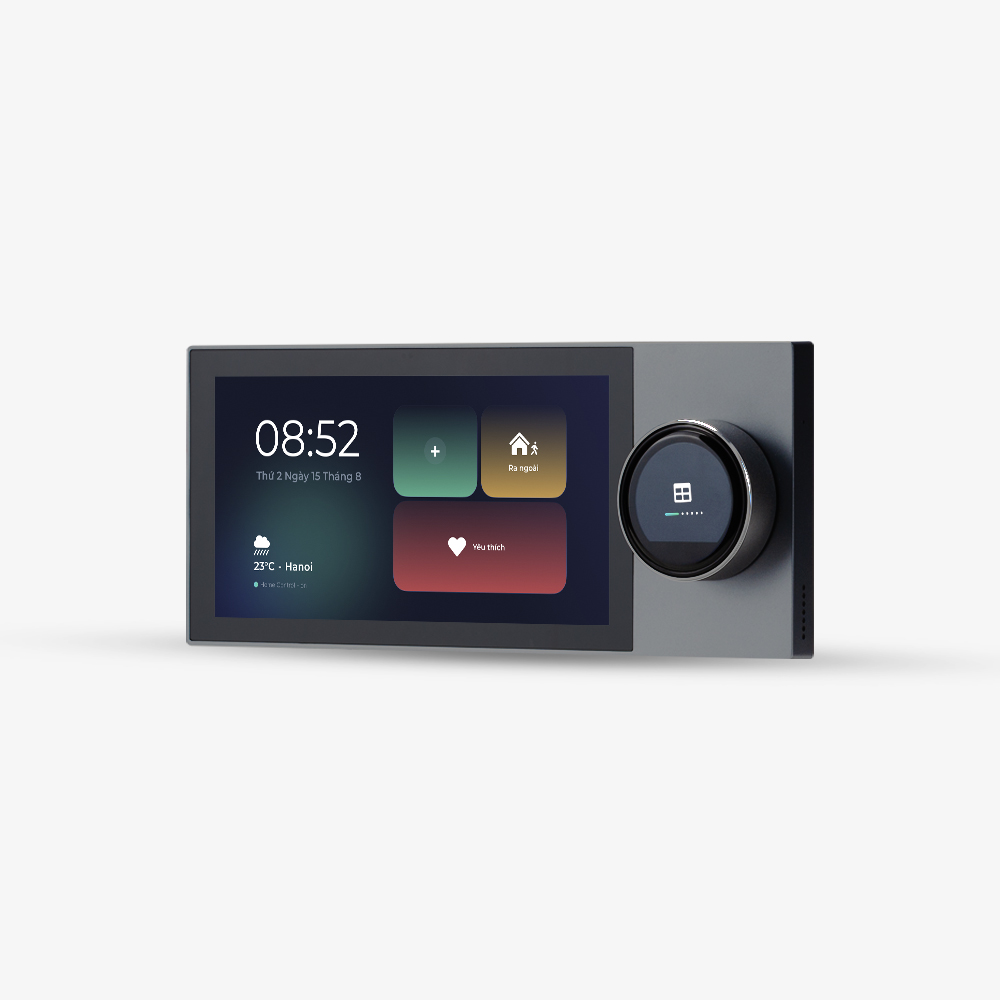

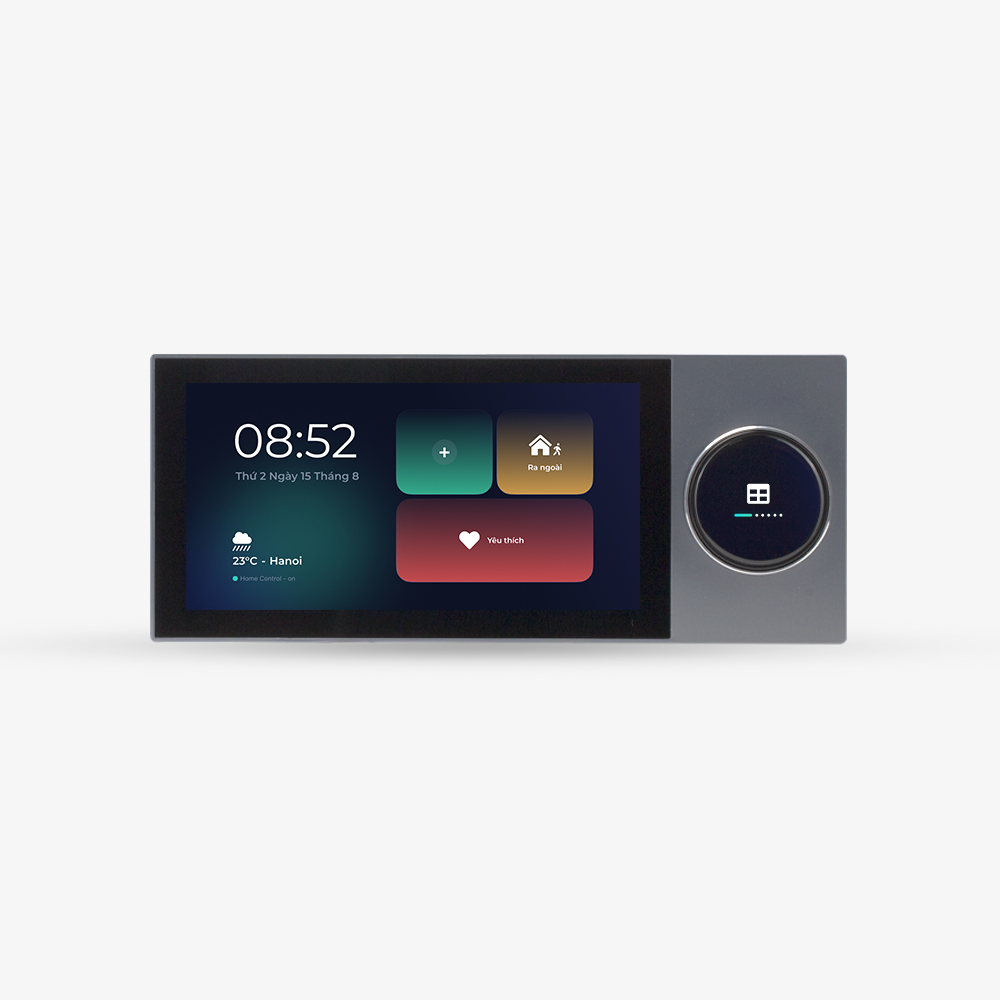

  • Main screen: Manage device, room, group, scene information, allowing users to directly interact with devices, rooms, groups, scenes via touch screen
  • Display detailed information, lighting parameters (brightness, CCT color, RGB color), environmental parameters (temperature sensor, humidity, fine dust, smoke), security parameters/images (smoke sensor, door, live camera view from screen)
  • Customize user experience with additional features: select favorite scenes/devices, bring frequently used scenarios/scenarios to the home screen, …
  • Small screen: Displays icons corresponding to the large screen, allowing users to switch screens directly by swiping the touch screen.
  • Rotary knob: Switches between user interaction screens
  • Configure, control, activate groups, scenes, scenarios
