THÔNG SỐ KỸ THUẬT:
Spectrum
Specs in this table apply to all models, except where noted.
Available Models: Force 300-13, Force 300-16, Force 300-19, Force 300-19R, Force 300-25, Force 300 CSM
Channel Width MHz 20 | 40 | 80
300-19R: 5 | 10 | 20 | 40 | 80
Proprietary Physical Layer: Air Interface on top of 802.11ac Wave 2 technology (2×2 MIMO/OFDM)
Channel Spacing: Configurable in 5 MHz increments
Frequency Range: Wide Band Operation 4910 – 5970 MHz (Note: Allowable frequencies and bands are dictated by individual country regulations.) 300 CSM: 4910-6135 MHz (Note: Allowable frequencies and bands are dictated by individual country regulations.)
MAC Layer (Media Access Control): Cambium Proprietary

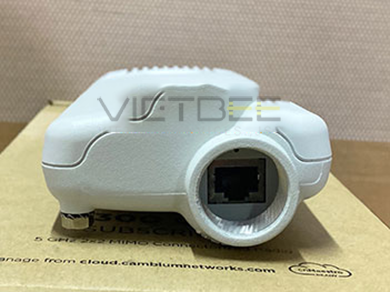

Ethernet Interfaced: 10/100/1000 BaseT, Compatible with Cambium PoE & Standard PoE pinouts
Protocols Used: IPv4/IPv6 (Dual Stack), UDP, TCP, ICMP, SNMPv2c, NTP, STP, IGMP, SSH
Network Management: IPv4/IPv6, HTTPs, SNMPv2c, SSH, Cambium Networks cnMaestro™
VLAN: 802.1Q with 802.1p priority
Performance: Force 300-19R
ARQ: Yes
Nominal Receive Sensitivity (w/FEC) @20 MHz Channel: MCS 0 = -89 dBm to MCS 8 (256 QAM-3/4) = -68 dBm (per chain)
Nominal Receive Sensitivity (w/FEC) @40 MHz Channel: MCS 0 = -87 dBm to MCS 9 (256 QAM-5/6) = -66 dBm (per chain)
Nominal Receive Sensitivity (w/FEC) @80 MHz Channel: MCS 0 = -84 dBm to MCS 9 (256 QAM-5/6) = -61 dBm (per chain)
Modulation Levels (Adaptive): MCS 0 (BPSK) to MCS 9 (256 QAM-5/6)
Transmit Power Range: 0 to +28 dBm (combined, to regional EIRP limit) (1 dB interval)
QoS (Quality of Service): Three level priority (Voice, High, Low) with packet classification by DSCP, COS, VLAN ID, IP & MAC Address, Broadcast, Multicast and Station Priority, MIR/CIR* suppo
Physical
Surge Supression*: 1 Joule Integrated 1
Environmental: IP67 & IP68
Temperature: -30°C to 60°C (-22°F to 140°F)
Weight: 1.45 kg (3.2 lb) Includes mounting bracket
Wind Survival: 180 km/hour (112 mi/hour)
Dimensions (Dia x Depth): 27.8 x 27.8 x 4.5 cm (10.9 x 10.9 x 1.8 in) with mounting bracket attached
Pole Diameter Range: 1 – 1.6 in (2.5 – 4.1 cm) with included clamp; up to 2.25 in (5.7 cm) with larger clamp
Power Consumption: 12 W (Up to 15 W in extreme cold temperatures when heater is activated.)
Input Voltage: Passive PoE (30 VDC Nominal); 14-30 VDC range
Security
Encryption: All models: 128-bit AES (CCMP mode)
Certifications
FCCID: Z8H89FT0048
FCC Regulatory Part #: C058900P901A
ETSI Regulatory Part #: C050900P904A
Industry Canada Cert: 109W-0048
CE: EN 301 893 V2.1.1 (5.4 GHz), EN 302 502 V2.1.1 (5.8 GHz)**
Antenna Specifications
Frequency Range: 4910 to 5970 MHz
Antenna Type: Panel
Peak Gain: 19 dBi
3 dB Beamwidth Azimuth: 14.5º
3 dB Beamwidth Elevation: 12.5º
Front-To-Back Isolation: n/a
Cross Polarization: n/a
Connectors: n/a
