| WI-FI |
| Radios |
- 2.4 GHz 802.11b/g/n client access radio
- 5 GHz 802.11a/n/ac client access radio
- 2.4 GHz & 5 GHz WIDS/WIPS, spectrum analysis, and location analytics radio
- 2.4 GHz Bluetooth Low Energy (BLE) radio with Beacon and BLE scanning support Concurrent operations of all four radios
- Supported frequency bands (country-specific restrictions apply):
- 2.412-2.484 GHz
- 5.150-5.250 GHz (UNII-1)
- 5.250-5.350 GHZ (UNII-2)
- 5.470-5.600, 5.660-5.725 GHz (UNII-2e)
- 5.725-5.825 GHz (UNII-3)
|
| 802.11ac and 802.11n Capabilities |
- 2 x 2 multiple input, multiple output (MIMO) with two spatial streams
- SU-MIMO and MU-MIMO support
- Maximal ratio combining (MRC) & Beamforming
- 20 and 40 MHz channels (2.4Ghz), 20, 40, and 80 MHz channels (5Ghz)
- Up to 256 QAM on both 2.4 GHz and 5 GHz bands
- Packet aggregation
|
| Power |
- Power over Ethernet: 37 – 57 V (802.3af compatible)
- Power consumption: 11 W max (802.3af)
- Power over Ethernet injector sold separately
|
| Mounting |

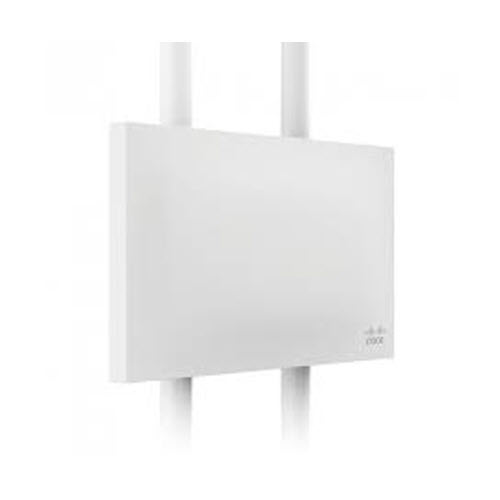

- Mounts to walls and vertical poles
- Mounting hardware included
|
| Physical Security |
|
| Environment |
- Operating temperature: -40 °F to 131 °F (-40 °C to 55 °C)
- Humidity: 5 to 95% non-condensing
- IP67 environmental rating
|
| Physical Dimensions |
- 10” x 6.2” x 2.6” (256 mm x 158 mm x 65 mm)
- Weight: 2.4 lbs. (1.09 kg)
|
| Interfaces |
- 1x 100/1000Base-T Ethernet (RJ45)
- Four external N-type female antenna connectors
|
| Security |
- IIntegrated layer 7 firewall with mobile device policy management
- Real-time WIDS/WIPS with alerting and automatic rogue AP containment with Air Marshal
- Flexible guest access with device isolation
- VLAN tagging (802.1Q) and tunneling with IPSec VPN
- PCI compliance reporting
- WEP, WPA, WPA2-PSK, WPA2-Enterprise with 802.1X EAP-TLS, EAP-TTLS, EAP-MSCHAPv2, EAP-SIM TKIP and AES encryption Enterprise Mobility Management (EMM) & Mobile Device Management (MDM) integration)
|
| Quality of Service |
- Advanced Power Save (U-APSD)
- WMM Access Categories with DSCP and 802.1p support
- Layer 7 application traffic identification and shaping
|
| Mobility |
- PMK, OKC, and 802.11r for fast Layer 2 roaming
- Distributed or centralized layer 3 roaming
|
| LED Indicators |
- 1 power/booting/firmware upgrade status
|
