| WI-FI |
| Radios |
- 2.4 GHz 802.11b/g/n/ac client access radio
- 5 GHz 802.11a/n/ac Wave 2 client access radio
- 2.4 GHz & 5 GHz dual-band WIDS/WIPS, spectrum analysis, and location analytics radio
- 2.4 GHz Bluetoth Low Energy (BLE) radio with Beacon and BLE scanning support
- Concurrent operation of all three radios
|
| Operating bands |
- 2.412-2.484 GHz
- 5.150-5.250 GHz (UNII-1)
- 5.250-5.350 GHZ (UNII-2)
- 5.470-5.600, 5.660-5.725 GHz (UNII-2e)
- 5.725 -5.825 GHz (UNII-3)
|
| 802.11ac and 802.11n Capabilities |
- 3×3 multiple input, multiple output (MIMO) with three spatial streams
- SU-MIMO and MU-MIMO support
- Maximal ratio combining (MRC) and beamforming
- 20 and 40 MHz channels (802.11n), 20, 40, 80, and 160 MHz channels (802.11ac Wave 2)
- Up to 256-QAM on both 2.4 GHz and 5 GHz bands
- Packet aggregation
|
| Power |
- Power over Ethernet: 37-57 V (802.3at required; functionality-restricted 802.3af mode supported)
- Alternative 12 V DC input
- Power consumption: 20 W max (802.3at)
- Power over Ethernet injector and DC adapter sold separately
|
| Mounting |
- All standard mounting hardware included
- Desktop, ceiling, and wall mount capable
- Ceiling tile rail (9/16, 15/16, or 1 1/2” flush or recessed rails), assorted cable junction boxes
- Bubble level on mounting cradle for accurate horizontal wall mounting
|
| Physical Security |
- Two security screw options (included)
- Kensington lock hard point
- Concealed mount plate with anti-tamper cable bay
|
| Environment |
- Operating temperature: 32 °F to 104 °F (0 °C to 40 °C)
- Humidity: 5% to 95%
|
| Physical Dimensions |
- 10.55” x 6.3” x 1.69” (268 mm x 160 mm x 43 mm), not including deskmount feet or mount plate
- Weight: 38.45 oz (1.09 kg)
|
| Antenna |

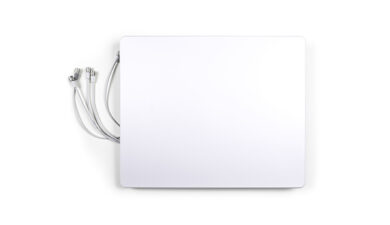

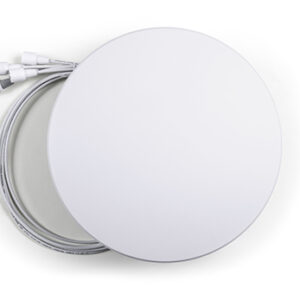

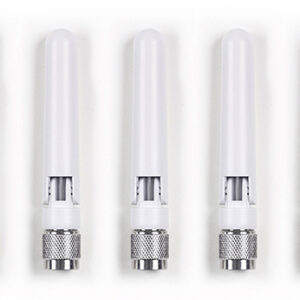

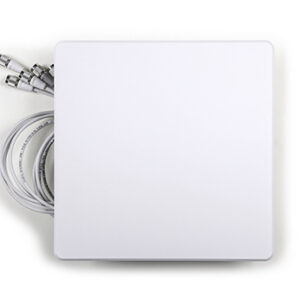

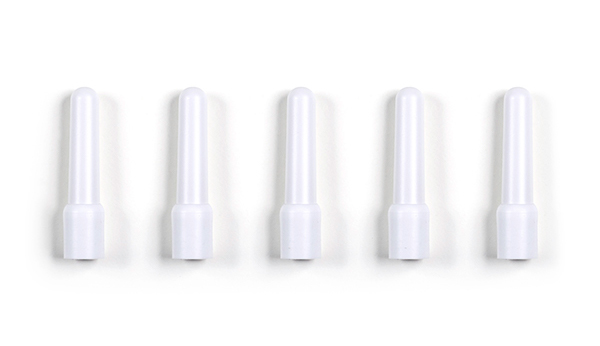

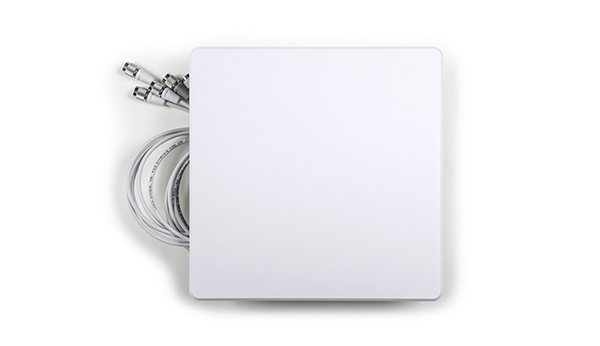

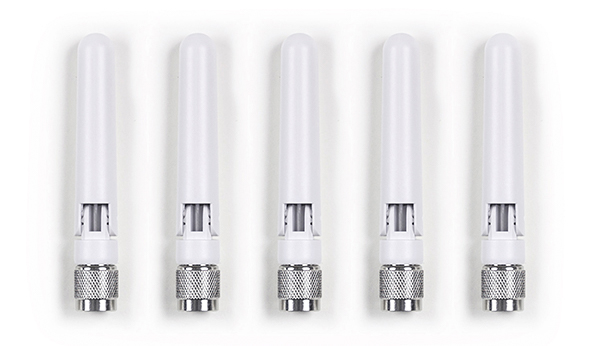

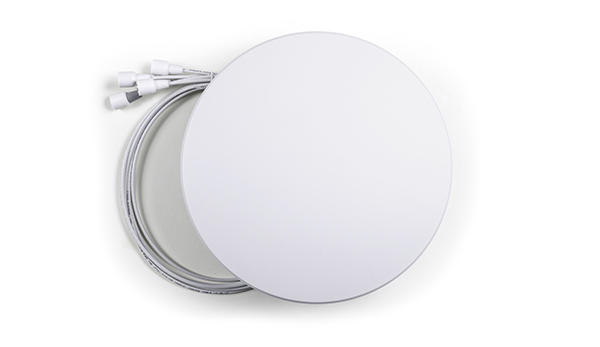

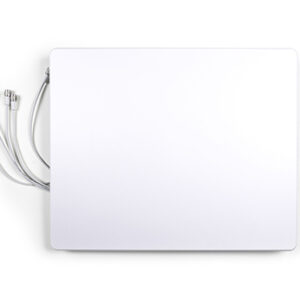

- List of compatible antennas: MA-ANT-3-A5/B5/C5/D5/E5/F5 Individual antenna elements for each radio
|
| Interfaces |
- 1x 10/100/1000 BASE-T Ethernet (RJ45)
- 1x DC power connector (5.5 mm x 2.5 mm, center positive)

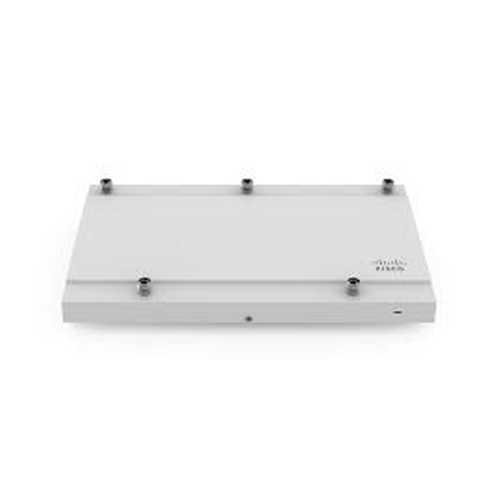

- Five external RP-TNC antenna connectors
|
| Security |
- Integrated Layer 7 firewall with mobile device policy management
- Real-time WIDS/WIPS with alerting and automatic rogue AP containment with Air Marshal
- Flexible guest access with device isolation
- VLAN tagging (802.1Q) and tunneling with IPSec VPN
- PCI compliance reporting
- WEP, WPA, WPA2-PSK, WPA2-Enterprise with 802.1X
- EAP-TLS, EAP-TTLS, EAP-MSCHAPv2, EAP-SIM
- TKIP and AES encryption
- Enterprise Mobility Management (EMM) & Mobile Device Management (MDM) integration
- Cisco ISE integration for guest access and BYOD posturing
|
| Quality of Service |
- Advanced Power Save (U-APSD)
- WMM Access Categories with DSCP and 802.1p support
- Layer 7 application traffic identification and shaping
|
| Mobility |
- PMK, OKC, and 802.11r for fast Layer 2 roaming
- Distributed or centralized Layer 3 roaming
|
| LED Indicators |
- 1 power/booting/firmware upgrade status
|
| Analytics |
- Embedded location analytics reporting and device tracking
- Global L7 traffic analytics reporting per network, per device, and per application
|
