Specifications
- SPECIFICATION
Native resolution: 1024×768
DC type: DC3
Brightness: 3800 ANSI Lumens
Contrast Ratio with SuperEco mode: 22000:1
Display Color: 1.07 Billion Colors Light source
: Lamp
Light source life (Nor/SuperEco): 5000/15000
Lamp Watt: 190W
Lens: F=2.56-2.68, f=22-24.1 mm
Projection difference: 120%+/-5%
Projection ratio: 1.96-2.15
Image size: 30″ – 300″
Projection distance: 1.19m-13.11 m(100″ @3.98m)
Keystone: H:+/-20° , V:+/-30°
Optical Zoom: 1.1x
Audible Noise (Eco): 27dB
Resolution support: VGA(640 x 480) to FullHD(1920 x 1080)
HDTV compatibility: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
Video compatibility: NTSC, PAL, SECAM
Horizontal frequency : 15K~102KHz

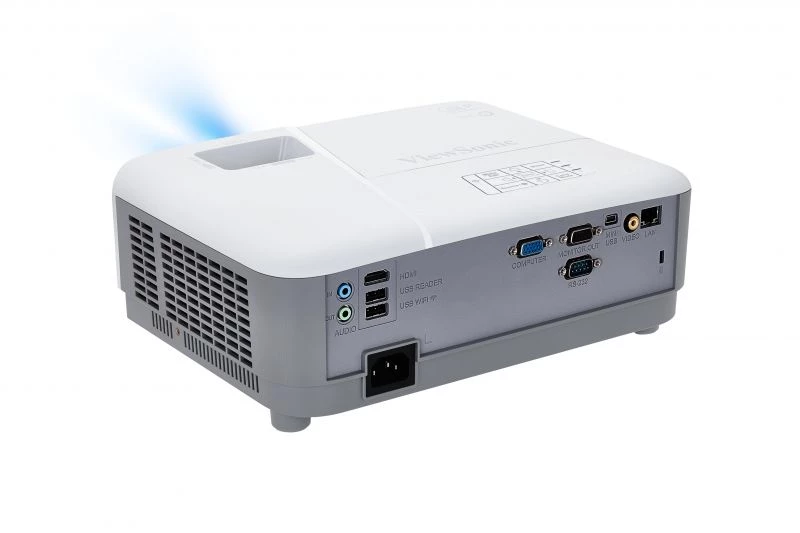

Vertical scanning speed: 23~120Hz - Input
Internal PC (connected to components): 1
Composite: 1
Audio Input (3.5 mm): 1
HDMI (HDCP): 1 (Back)
(HDMI 1.4/ HDCP 1.4) - Output
Monitor: 1
Audio out port (3.5 mm): 1
Speaker: 10W
USB type A (Power): 2 (1 x reader 5V/0.5A & 1 x optional wifi dongle)
- Control
RS232: 1
RJ45: 1
USB type mini B (Services): 1 - Other
Supply voltage: 100-240V+/- 10%, 50/60Hz AC
Power consumption: Normal: 260W
Standby: <0.5W
Operating temperature: 0~40℃
Carton: Brown
Net weight: 2.3kg
Dimensions ( WxDxH) w/adjustment foot: 294x218x110mm
Language: English, French, Spanish, Thai, Korean, German, Italian, Russian, Swedish, Dutch, Polish, Czech, T-Chinese, S-Chinese, Japanese, Turkish, Portuguese, Finnish, Indonesian, Indian, Arabic, Vietnamese - Standard Accessory
Power cord: 1
VGA cable: 1
Remote control: 1 (w/ laser pointer)
QSG & CD: QSG: 1 / CD: NA - Optional accessories

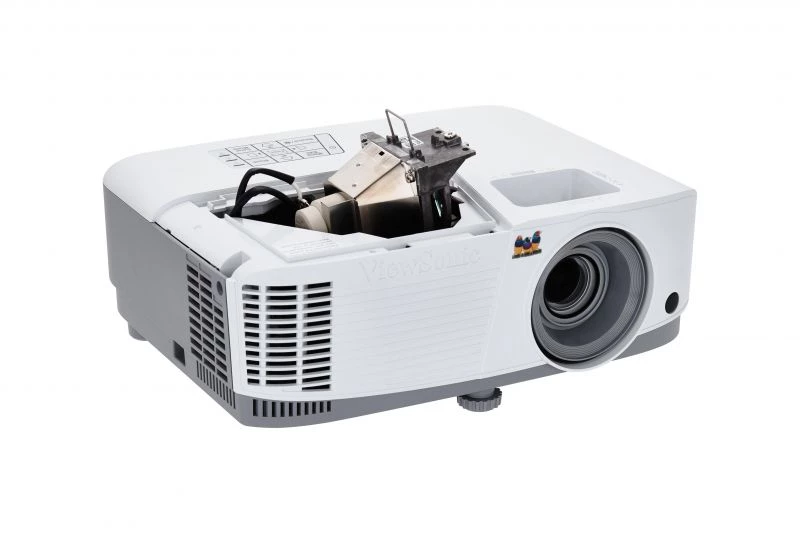

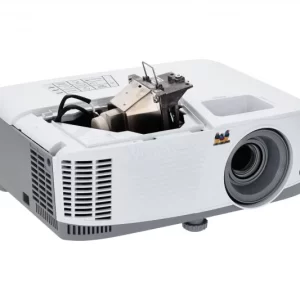

Lamp / Light source: RLC-108
Air filter: RSPL
Carrying bag: PJ-CASE-008
