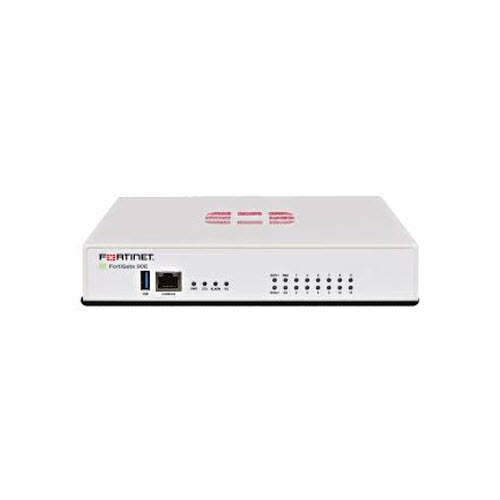

Thông số kỹ thuật: Firewall FortiGate FG-90E
Interfaces and Modules
GE RJ45 Ports 16
Console Port 1
USB Port 1
Internal Storage
System Performance and Capacity
Firewall Throughput 4 Gbps
Firewall Latency (64 byte, UDP) 182 μs
Firewall Throughput (Packet per Second) 375 Kpps
Concurrent Sessions (TCP) 1.2 Million
New Sessions/Sec (TCP) 27,500
Firewall Policies 5,000
IPsec VPN Throughput (512 byte) 245 Mbps
Gateway-to-Gateway IPsec VPN Tunnels 200
Client-to-Gateway IPsec VPN Tunnels 2,500
SSL-VPN Throughput 95 Mbps
Concurrent SSL-VPN Users 200
SSL Inspection Throughput (IPS, HTTP) 300 Mbps
Application Control Throughput 510 Mbps
CAPWAP Throughput (1444 byte, UDP) 2.2 Gbps
Virtual Domains (Default / Maximum) 10 / 10
Maximum Number of Switches Supported 8
Maximum Number of FortiAPs (Total / Tunnel Mode) 32 / 16
Maximum Number of FortiTokens 100
Maximum Number of Registered FortiClients 200
High Availability Configurations
Active / Active, Active / Passive, Clustering
System Performance — Optimal Traffic Mix
IPS Throughput 1 Gbps
System Performance — Enterprise Traffic Mix
IPS Throughput 470 Mbps
NGFW Throughput 375 Mbps
Threat Protection Throughput 270 Mbps
Dimensions and Power
Height x Width x Length (inches) 1.7 x 8.5 x 7.0
Height x Width x Length (mm) 43.9 x 216 x 178.5
Weight 2.884 lbs (1.308 kg)
Environment
Power Required 100–240V AC, 60–50 Hz (External DC Power Adapter)
Maximum Current 100V AC / 1.5A
Power Consumption (Average / Maximum) 22.8 W / 27.36 W
Heat Dissipation 77.7936 BTU/h
Operating Temperature 32–104°F (0–40°C)
Storage Temperature -31–158°F (-35–70°C)
Humidity 10–90% non-condensing
Noise Level 40 dB
Operating Altitude Up to 7,400 ft (2,250 m)
Compliance FCC Part 15 Class B, C-Tick, VCCI, CE, UL/cUL, CB
Certifications
ICSA Labs: Firewall, IPSec, IPS, Antivirus, SSL VPN; USGv6/IPv6
