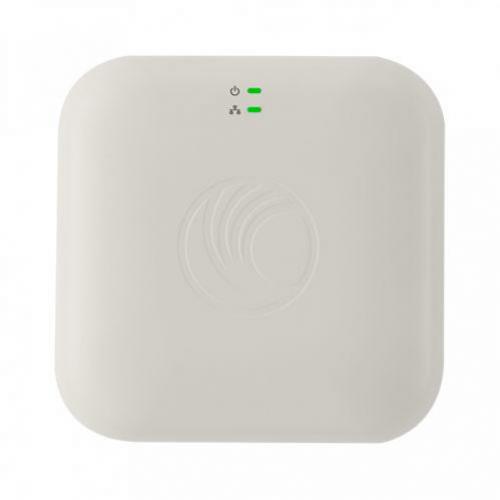

Cambium cnPilot E400

  • Hoạt động dual-band: 2.4Ghz và 5Ghz 802.11ac
  • 16 SSID và 256 user truy cập đồng thời
  • Max Throughput: +1.167 Gbps
  • Tầm phủ sóng tối đa: 180 m (600 Ft)
  • Công suất phát sóng cực mạnh từ 20-30 dBm
  • Chức năng Roaming không cần Controller
  • Cho phép tạo lưới mạng Mesh
  • Hỗ trợ phân tích các kênh nhiễu và không nhiễu.

SKU: Cambium cnPilot E400 - Wifi Indoor Danh mục:

cnPilot E400 Specifications
Access Point Specifications
Standards IEEE 802.11a/b/g/n/ac Wave 2
Others: 802.11 h/d/r/u/w/
MIMO Streams 2×2 MIMO streams
Range 180 m (650 Ft)
Concurrent Clients 256
Max Data Rates +1.167 Gpbs
SSID 16 SSIDs across 2 radios
Antenna gain 4.55 dBi (2.4 GHz)/4.25 dBi (5 GHz)
Multi-Hop Mesh Yes. Supported on Indoor & Outdoor access points.
Mesh auto-recovery supported
Polarization 5 GHz dual Polarized antenna
Antenna Coverage Omni (360°)
Ethernet Ports One (1) x 1 Gigabit Ethernet (10/100/1000 Mbps)
Frequency bands 2.4 GHz: 2400-2484 MHz
5 GHz: 5150-5850 MHz with DFS band support
Power Supply Standard 802.3af injector (supplied) or any PoE switch
Power Consumed 13W (max)
Dimensions 18 cm x 18 cm x 3 cm
Weight 350g
Temperature 0°C to +50°C
LED Bi-color LEDs. Two windows showing Controller adoption and AP status
Max TX Power +25 dBm
Physical Lock Kensington key hole
Wi-Fi Features
Controller modes
  • Autonomous Controller-less operations (E.g.: roaming)
  • Cloud Managed
  • On-premise virtualized controller
Secure WLAN
  • WPA-TKIP, WPA2 AES, 802.1x
  • 802.11w (Protected Management Frames)
Hotspot 2.0/Passpoint Yes
Captive Portal/ Guest Access
  • cnMaestro Controller
  • Stand-alone AP based
  • Redirection to external RADIUS Server
  • Server DNS logging
Authentication
  • Secure Web page, RADIUS based 802.1x including EAP-SIM/AKA, EAP-PEAP, EAP-TTLS, and EAP-TLS
  • MAC authentication (local database or External RADIUS server)
Accounting Yes. Supports RADIUS based accounting to multiple AAAs
Scheduled SSID Turn SSID ON/OFF on a daily/weekly/time of day basis
Guest Access Yes. With Active Directory Integration
VLAN
  • Dynamic VLAN assignment from RADIUS server.
    VLAN per SSID per user
Data Limiting Dynamic rate limiting of client traffic per SSID & per client
Subscriber QoS WMM
Client Isolation Yes
Controller-Less Fast Roaming Yes. 802.11r, Opportunistic Key Caching supports Enhanced roaming Disconnect for sticky clients
Airtime Fairness Yes
Meshing Multi-hop meshing supported (3)
ACS: Automatic Channel Selection Yes. Set at start or run periodically
NAT Yes
DHCP Server Yes
Firewall Yes. NAT logging
ACL, DNS-ACL Yes. L2, L3 or DNS based access control
Band Steering Band Balancing Yes
Airtime Fairness Yes
Tunneling
  • L2TP
  • L2oGRE
  • PPPoE
Tools
  • Packet capture
  • IP connectivity
  • Wi-Fi analyzer
  • Wireless Sniffer
  • Tech support (logs)
Services
  • NTP server config
  • Syslog servers
  • SNMP traps support
  • DNS proxy
  • cnPilot’s critical resource service awareness feature reacts to the health of an external Gateway or AAA and turns SSID ON/OFF
APIs Presence Locationing API
